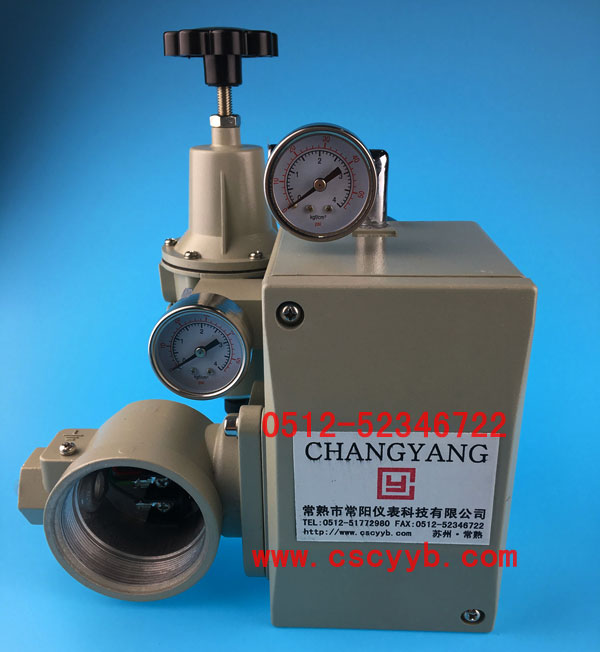

型號

HEP

 單動作型執行機構用       For spring return type

①結構Enclosure

15

 耐壓防爆型dExdIIBT6   Explosion proof type

16

 本質安全型iExiaIICT6   Intrinsically safe explosion proof type

17

 室外防水型e ExellT6     Weather proof type

  輸入信號Input signal

  4～20 mA DC可進行分程控制調整范圍4～12，12～20 mA DC

  The split range is possible by span adjustment and zero adjustment.Adjustable range: 4～12, 12～20 mA DC.

  輸入阻抗Input impedance

  250Ω±10Ω

  氣源壓力Air supply

140～160 KPa,120 ～500 KPa

  耗氣量Air consumption

  單動作型

  Single acting type : 5Nl / min at 140 KPa air supply

  性能Performance

  單動作型執行機構For single acting actuator

  直線性Linearity-----------------------------------±1.0% F.S

  回差Hysteresis---------------------------------------1%F.S

  靈敏度Response level-------------------------------0.1% F.S

  重復精度Repeatability------------------------------0.2% F.S

  氣源接口Air connection

  Rc 1/4

  電氣接口Wiring connection

  Rc 1/2

  環境溫度Ambient temperature

  -40～80℃

  防護等級Protection

  IP65

  外殼材料Housing material

  鋁合金Aluminum alloy

  表面涂層Coating

  噴塑Epoxy resin group paint

  重量Approx. weight

  3.5KG
