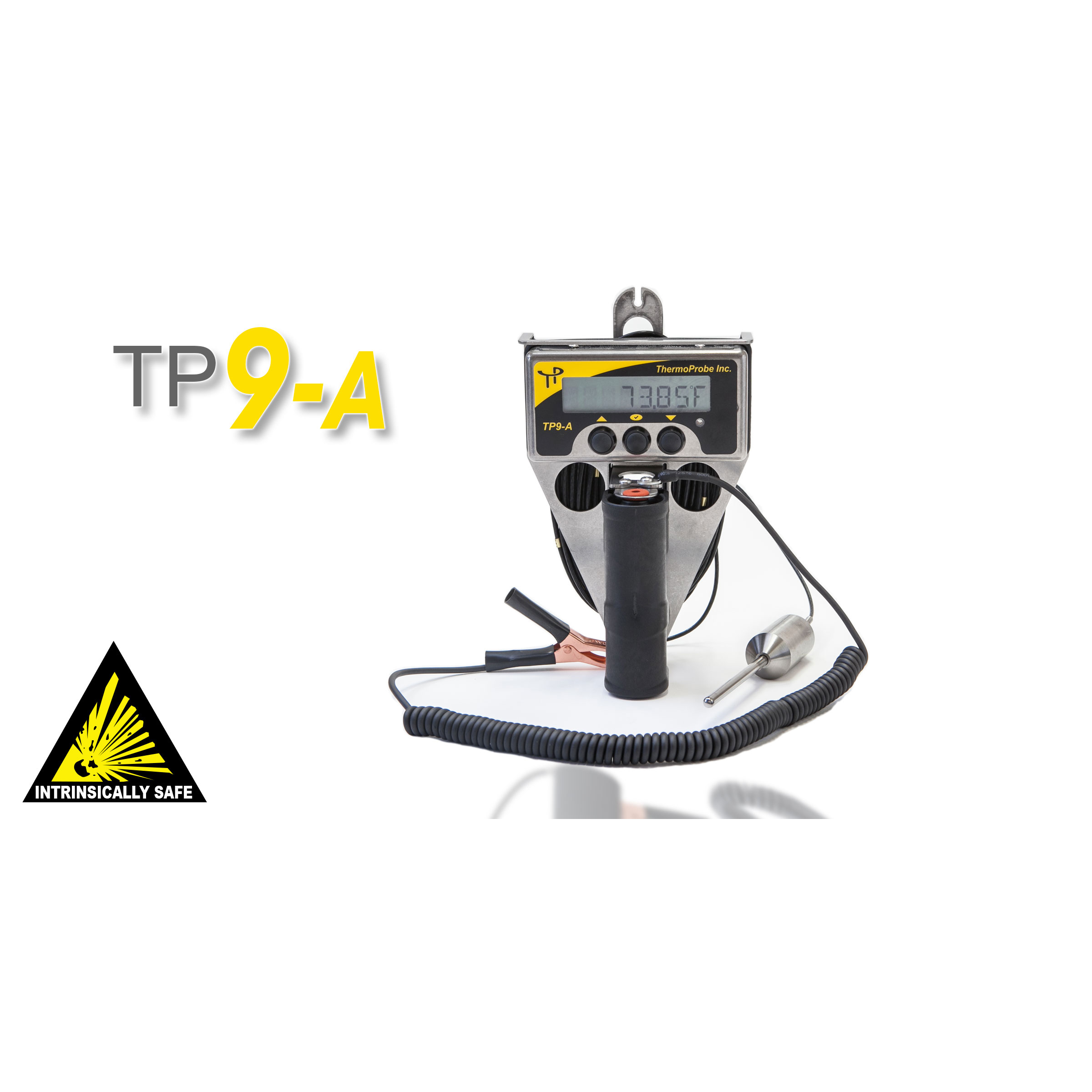

- TP9-A便攜式防爆本質安全石油測量溫度計 TP9-A石油溫度計的設計和測試符合國際本質安全防爆標準，適用于易燃易爆場合0區。 TP9-A采用耐用的不銹鋼和塑料部件，符合人體工學設計。表面和不粘電纜易于清潔，使TP9-A非常適合瀝青等重質液體產品。與以前的型號一樣，TP9-A采用耐用的薄膜RTD傳感器，可提供可靠的溫度測量，適用于低光照條件的自動背光，以及更高精度的新主板。現在有一個更大的顯示屏，帶有1/2英寸（13毫米）的字母數字字符和凸起按鈕，易于操作。中間按鈕是簡單的開/關操作。直觀的菜單提供用戶記錄讀數，選擇攝氏度或華氏度單位，顯示分辨率和校準溫度。顯示屏上的圖標有助于用戶查看溫度穩定性，電池狀況和執行輔助功能。易于更換的AA電池可提供長達200小時的機器運行。 TP9-A具有多種探頭配置，允許的電纜長度可達165英尺（50米），是許多儲罐計量應用的理想選擇。 提供一年保修，NIST可追溯的4點校準報告和操作手冊，提供終身服務。 溫度： 分辨率：0.01度 溫度范圍：-40°F至400°F（-40°C至204°C） 注意：標準校準不提供全范圍精度 校準精度： 32到200°F時±0.2°F（0到100°C為±0.1°C） 200至400°F時±0.5°F（100至200°C為±0.3°C） 可定制校準點和范圍。 4點NIST可追溯測試報告 長期漂移不超過0.05％/年 符合API要求 特點： ?1/2英寸（13毫米）LCD顯示屏 ?可切換單位°C或°F ?分辨率0.1或0.01 ?低電量和故障指示 ?通過面板按鈕進行校準調整。 ?20分鐘后自動關閉。 ?存儲和顯示10個記錄讀數，平均，低和高讀數。 ?指示溫度升高/降低的箭頭。 ?推薦的環境溫度范圍：32°F至112°F（0°C至44°C） 構造： ?探針：304不銹鋼，密封膠，同軸電纜，芳綸纖維和PFA電纜護套 ?外殼：不銹鋼堅固的面板安裝按鈕靜電耗散塑料手柄 ?主體尺寸：10“L x 4.5”H x 6“W（24.5 x 12 x 14cm） ?重量：3.1磅（1.4千克） - 帶75'標準重量的探頭組件 電池： 2節AA堿性; 電池壽命約為200小時 電池工作溫度范圍為-4到130°F（-20到54°C） 注意：如果環境溫度極低或過高，電池可能無法提供足夠的電量。 典型應用： 管輸，危險場所，本質安全，庫存盤點，過程檢測，儲罐，管道，駁船，船舶，鐵路槽車，油罐車 材料：汽油，柴油，瀝青，液體硫磺，石化產品，粘稠，腐蝕性，酸，化學，堿，糖蜜，糖漿，蒸餾酒，航空燃料 推薦操作： API 7.2，油輪和碼頭國際安全指南，API 4和其他認可的程序和標準。 TP9-A Zone 0 Intrinsically Safe?Portable Petroleum Gauging Thermometer re-designed to the latest standards for use in Hazardous Locations Description The?TP9-A?is a Zone 0 intrinsically safe digital gauging thermometer re-designed to the latest standards for use in hazardous locations. With over 30 years experience manufacturing digital thermometers, ThermoProbe has designed the TP9-A with reliable, high accuracy RTD sensors based on our previous industry-standard thermometers such as the TP7-C and TP9. The latest TP9-A electronics are more accurate than previous models based on our laboratory thermometer technology. The convenient user interface provides a large 1/2” alpha numeric character display and buttons that can be easily used with gloves. An automatic backlight feature is included to help reading the display in low light conditions. An intuitive menu allows the user to easily select Celsius or Fahrenheit units, display resolution, and access calibration. Icons on the display help the user identify temperature stability, battery condition and menu items. The TP9-A comes equipped with easily replaceable AA batteries, providing up to 200 hours of operation. The TP9-A rugged instrument body is constructed from stainless steel and static-dissipative plastic components. The TP9-A ergonomic probe storage and stainless construction is well suited for gauging heavy products that are hard to clean such as asphalt. With multiple probe configurations and allowable lengths up to 50 meters (165 ft), the TP9 is well suited to many tank gauging applications. The probe assembly is constructed of easy to clean materials such as non-stick cable and stainless steel. Certifications The TP9-A is recognized with international (IECEx), European (ATEX), and EurAsian (TR TS) safety certificates. ? Applications Recommended Operation per API 7.2, International Safety Guide for Oil Tankers and Terminals, API 4 and other recommended procedures and standards. Custody Transfers, Hazardous Location, Intrinsically safe, Inventory, PET, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck, Viscosity, Petroleum, Portable, Digital, Thermometer, Inspector, NIST, Certified, Ex, ATEX, IECEx, EAC, TIIS, GOST, TR TS Gasoline, Diesel, Asphalt, Molten Sulphur, Petrochemical, Viscous, Caustic, Acid, Chemical, Alkali, Molasses, Syrup, Distilled spirits, Aviation fuel Maximum Dimensions：10”L x 4.25”H x 6.4” W Weight：3.1 lb (1.4 kg) – with 75' standard weight probe assembly Probe：Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA Cable Jacket, Coaxial Construction Enclosure Material：Stainless Steel Static-dissipative Plastic Probe Holder Batteries：2 AA Alkaline; Battery Life of approximately 200 hours Battery manufacturer’s battery operating temperature range -4 to 130°F, -20 to 54°C Note: Battery may not provide adequate power if ambient temperature is extremely low or high. Temperature：Resolution 0.01 Range: -40 to 400°F -40 to 204°C Calibrated Accuracy: ±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F ±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C 4 Point NIST Traceable Report of Test Long-term drift not to exceed 0.05%/year Meets API requirements Certification：ATEX & IECEx (Ex ia IIB T4 Ga) Maximum Dimensions 10”L x 4.25”H x 6.4” W Weight 3.1 lb (1.4 kg) – with 75' standard weight probe assembly Probe Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA Cable Jacket, Coaxial Construction Enclosure Material Stainless Steel Static-dissipative Plastic Probe Holder Batteries 2 AA Alkaline; Battery Life of approximately 200 hours Battery manufacturer’s battery operating temperature range -4 to 130°F, -20 to 54°C Note: Battery may not provide adequate power if ambient temperature is extremely low or high. Temperature Resolution 0.01 Range: -40 to 400°F -40 to 204°C Calibrated Accuracy: ±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F ±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C 4 Point NIST Traceable Report of Test Long-term drift not to exceed 0.05%/year Meets API requirements Certification ATEX & IECEx (Ex ia IIB T4 Ga) Probe Assemblies Thermoprobe gauging thermometers come equipped with probe assemblies consisting of a length of non-stick 2-wire cable and a stainless steel weighted RTD temperature sensor. Indelible brass markings are applied to the cable to aid in tank depth determination. The Probe Assembly part numbers are specified as follows: Example: Our most standard PG-075-SW-SM probe assembly is 75 feet long (075) with a Standard Weight (SW) and brass markings every 5 feet (SM). Various configurations are available. ? Standard Weight 0.25 lb (0.11 Kg) This reliable design is our most popular probe. ? Extra Weight 0.50 lb (0.23 Kg) This design has the same diameter as the Standard Weight but is slightly longer and heavier. ? ? Railcar Weight / No Weight The Railcar probe is produced as a specialty probe for the railcar industry specifically for small diameter gauging tubes fitted in many tanker cars. ? Asphalt Weight 0.75 lb (0.34 Kg) The probe of choice when working with liquid asphalt, molten sulfur, molasses, or similar high-viscosity petrochemicals.
