氣體干燥管，價格，廠家，上海桑戈供

這真不是您需要的產品？
品　　牌：
drierite

直接提問 | 回首頁搜
出廠價：
0

主要規格：
1

用　　途：

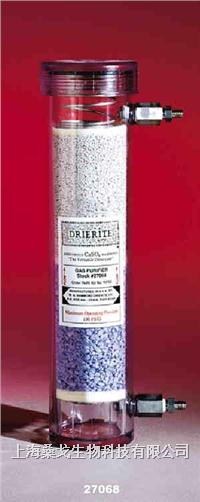

氣體干燥管，價格，廠家，上海桑戈供氣體干燥管GAS PURIFIER This DRIERITE Gas Purifier is specially designed for gas chromatography and other applications requiring dry, pure gas. It will dry, purify, and filter gases used for chromatography and spectrometry. The purifier is filled with Indicating DRIERITE and 5A Molecular Sieves for the removal of moisture, impurities, and particulates from gas lines. It is easy to attach using the compression type tube fittings common to most laboratory instruments. This unit is available filled with 500 cc of Indicating DRIERITE for applications that require only drying and filtering. Plastic coated mounting clips may be purchased separately. Note: Do not use this drier in the presence of vapors or liquids containing phosphate esters, synthetic lubricants, hydrocarbon solvents, methanol, acetone, lacquer solvents, or other organics. Color Change Indicating DRIERITE dries gases to a dryness of 0.005 mg/l. Color changes from blue to pink upon exhaustion. 5A Molecular Sieves 5A Molecular Sieves remove impurities that have an effective molecular diameter of less than 5 angstroms. Applications For use in gas chromatography to prevent ghost peaks and to improve baselines. The gas purifier should be used for carrier gases and for flame lonization detector air and hydrogen gases. The gas purifier may also be used to remove moisture and impurities from gases when purging spectrophotometer compartments, etc. Refillable Refillable upon exhaustion (DRIERITE turns pink) with refill kit Stock No. 27069, or contents may be regenerated. See Regeneration of Drierite Desiccants. SPECIFICATIONS Construction: Column is molded polycarbonate. Polycarbonate cap is fitted with oring gasket. DRIERITE and molecular sieves held in place between felt filters. Bed supports and coil spring are stainless steel. 40 Micron outlet frit is 316SS. Dimensions: 2 5/8 " x 11 3/8 " Max working pressure: 100 psig Connections: 1/8" stainless steel male tube fittings Desiccant: 250 cc Indicating DRIERITE and 250 cc 5A Molecular Sieves Water capacity: 25 grams Recommended flow rate: up to 300 liters per hour for maximum efficiency STOCK NO. DESCRIPTION 27068 Gas purifier L68GP 27069 Refill kit RF68 27070 Gas purifier L68GP filled with Indicating DRIERITE only 26809 Mounting clip 氣體干燥管GAS PURIFIER
